Handles a big doorway easily
Covers a 4m bay and the chain makes it light to operate. Stops the rain blowing straight through the building.
George M.LancashireVerified
Made to measure
Agricultural · Hand Chain Roller Blinds
Hand Chain Roller Blinds
Chain operated Cuts wind 75% Lets light in
Drops up to 4.2m240g/m² meshSide channels over 4.2mFETF274
Colour Standard green
£650 ex VAT £864 inc VAT & UK mainland delivery
Need a different size? Design it to measure for a quote.
Currently booking around 3 weeks ahead. Reserve your slot
Prefer to talk? 01455 698 565 Delivered across UK mainland
- Made to measure for larger building openings
- Smooth, controlled hand chain operation
- Cuts wind and rain by up to 75%
Hand chain roller blinds for larger agricultural openings where controlled operation and extra drop are required. Coated PVC mesh keeps ventilation and natural light.
Suitable for drops up to 4.2m as standard. For drops over 4.2m, aluminium side channels are required for health and safety to guide and secure the blind. Made from 240g/m² coated PVC mesh and extruded aluminium, with a choice of mesh colours, chain length and additional brackets where required. Meets FETF274, 10-year guarantee.
Made to measure
Every blind is cut and built to your exact opening, with side channels where the drop requires them. No off-the-shelf sizes.
Made in Britain
Designed and manufactured at our own Leicestershire production site, from materials we source in the UK.
10-year guarantee
Backed against faults in our manufacture and the materials we supply, in normal use. Full terms available on our website.
- Made-to-measure hand chain roller blind
- Extruded aluminium tube and brackets
- Hand chain in your chosen length
- Aluminium side channels where drop requires (over 4.2m)
- 10-year guarantee
- Smooth, controlled hand chain operation
- Suitable for drops up to 4.2m as standard
- Side channels required for drops over 4.2m
- Reduces wind and rain by up to 75%
- Standard Green, Grey or Black mesh
- Meets FETF274 requirements
| Mechanism | Hand chain |
|---|---|
| Max drop | 4.2m standard (side channels over 4.2m) |
| Material | 240g/m² PVC coated polyester mesh |
| Tensile strength | Warp 1400 / weft 1200 |
| Options | Chain length, additional brackets |
| Colours | Green, Grey or Black |
| Standards | Meets FETF274 |
| Guarantee | 10 years (terms apply) |
Leave the shrink wrap on until the blind is fitted. Measure between the bracket fixing holes and mark the position level and slightly off centre, so the mesh sits central in the opening. Drill and bolt the blind up, then fit the chain guide and thread the chain around the wheel, joining the ends with the supplied shackle. Pull down to mark and fix the C brackets for the bottom bar, then mount the locking box on the post to lock the chain and tension the blind. Drops over 4.2m also take aluminium side channels for health and safety. A full fitting guide is supplied with every blind.
Around three weeks from order in normal conditions, delivered across UK mainland. PLACEHOLDER: confirm carrier, delivery charge and returns policy before launch.
The problem
Big openings are the hardest to weatherproof.
Large doorways and bays let wind, rain and snow straight through. A fixed screen is not always practical. A hand chain blind lets you close a big opening down in controlled stages and open it back up for airflow. With animal welfare a priority, you protect livestock without closing the building up completely, for happier, healthier stock.
What it is
Controlled cover for bigger openings.
Coated PVC mesh on extruded aluminium, operated by a smooth hand chain so even large blinds are easy to raise and lower. Suitable for drops up to 4.2m as standard.
- Smooth, controlled chain operation
- Drops up to 4.2m as standard
- Side channels for drops over 4.2m
What it does
Shut out the weather on the big openings.
Lower the blind to cut wind and driving rain by up to 75% across a large opening, and raise it for ventilation when it clears. Steadier conditions for housed stock and machinery.
- Cuts wind and rain by up to 75%
- Keeps ventilation and natural light
- Meets FETF274 for grant work
At a glance
Hand Chain Roller Blinds specification
- Mechanism
- Hand chain
- Max drop
- 4.2m standard
- Over 4.2m
- Aluminium side channels
- Material
- 240g/m² coated PVC mesh
- Standards
- Meets FETF274
- Guarantee
- 10 years
Key features
Controlled cover for the big openings
Hand chain operation
Smooth, controlled chain makes even large blinds easy to raise and lower.
Coated PVC mesh
240g/m² mesh that cuts wind and rain by up to 75% while keeping light.
Side channels
Aluminium side channels guide and secure the blind on drops over 4.2m.
Grant ready
Meets FETF274 requirements and carries a 10-year guarantee.

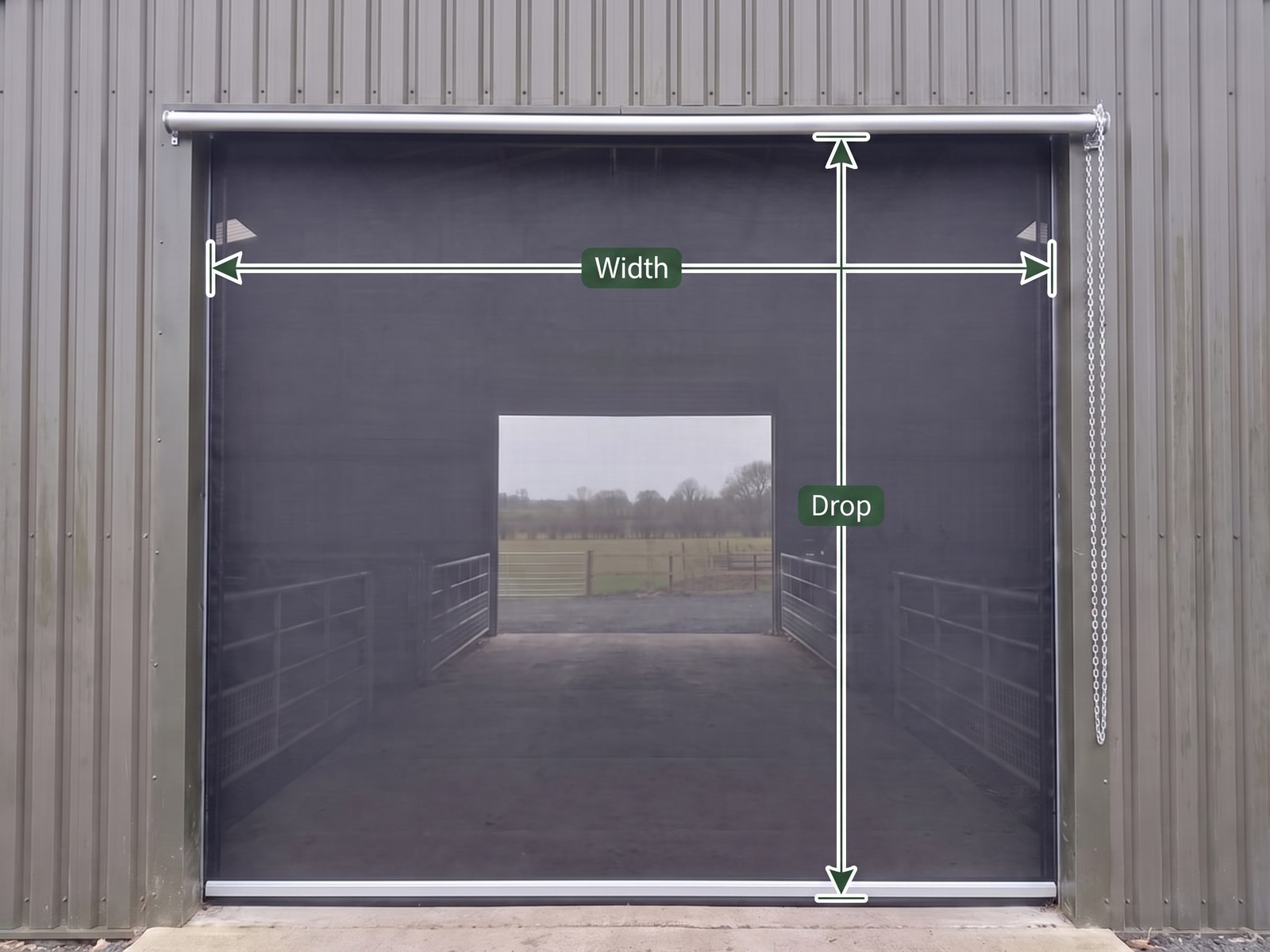

Dimensions & measuring
Measure the opening, we make it to fit.
Made to measure for drops up to 4.2m as standard. Send the opening size and we will confirm whether side channels are needed.
- Width across the opening
- Drop from the tube to the sill
- Whether the drop exceeds 4.2m
Drops over 4.2m require aluminium side channels for health and safety.
Compare with similar covers
All agricultural covers Other covers we make
Spring Roller Blinds
Spring Roller Blinds
Quick spring raise-and-lower operation, drops up to 3m.
Windbreaks
Windbreaks
Fixed, tensioned mesh screens for permanently exposed elevations.
How to Fit
How to Fit
Step-by-step fitting of your hand chain roller blind.
Rollover Sheet Kits
Rollover Sheet Kits
Made-to-measure, self-fit trailer sheet systems with powder-coated arches.
Customer reviews
What farmers say
4.9 Based on 81 reviews
Side channels were the right call
They advised side channels for the drop and it is rock solid in the wind. Good honest advice.
Hywel T.CeredigionVerified
Solid bit of kit
Well built and operates smoothly. Fitting took two of us but that is to be expected at this size.
Andrew K.AberdeenshireVerified
Common questions
Hand Chain Roller Blinds questions, answered plainly
Up to 4.2m as standard. For drops over 4.2m, aluminium side channels are required for health and safety to guide and secure the blind.
By a smooth hand chain, so even large blinds are easy to raise and lower in a controlled way.
Yes, they meet FETF274 requirements.
The mesh is UV stabilised and every product carries our 10-year guarantee, subject to terms.
We're here to help
Got a question about hand chain roller blinds? Talk to the people who make them. We will help you measure up and spec the right product.
